MIL-PRF-19500/376K

B - version

NOTES:

1. Die size:

.018 inch (0.457 mm) x .018 inch (0.457 mm).

.008 inch (0.203 mm) .0016 inch (0.041 mm).

2. Die thickness:

3. Base pad:

.0025 inch (0.064 mm) diameter.

4. Emitter pad:

.003 inch (0.076 mm) diameter.

Gold, 6,500 1,950 �.

5. Back metal:

Aluminum, 19,500 2,500 �.

6. Top metal:

7. Back side:

Collector.

SiO2, 7,500 1,500 �.

8. Glassivation:

9. Millimeter equivalents are given for general information only.

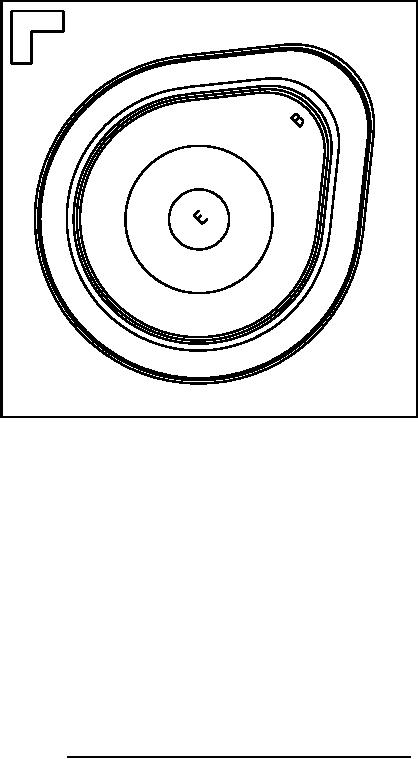

FIGURE 5. Physical dimensions, JANHC and JANKC die, B - version.
