MIL-PRF-19500-408 Semiconductor Device, Transistor, Npn, Silicon, High-Power, Types 2N3715 And 2N3716, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, high-power transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/408K
Maximum Thermal Impedance
10
1
0.1
0.01
0.000001
0.01
10
0.001
0.00001
0.1
0.0001
1
Time (s)
TC = +25C. Thermal resistance = 1.5°C/W.

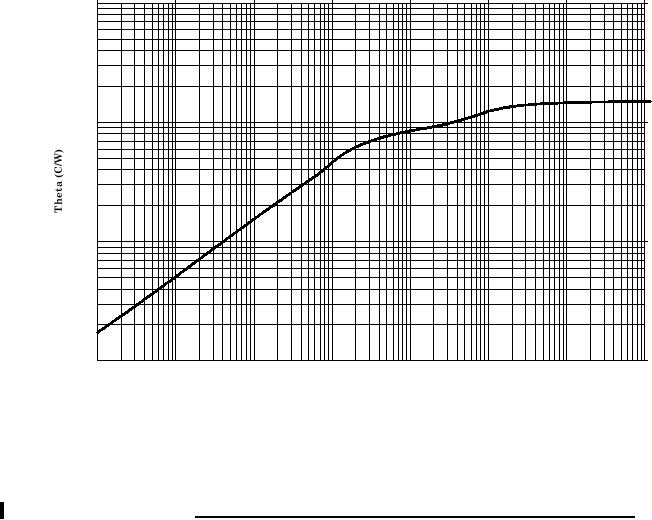

FIGURE 3. Transient thermal impedance graph for device types 2N3715 and 2N3716.
