MIL-PRF-19500/408K

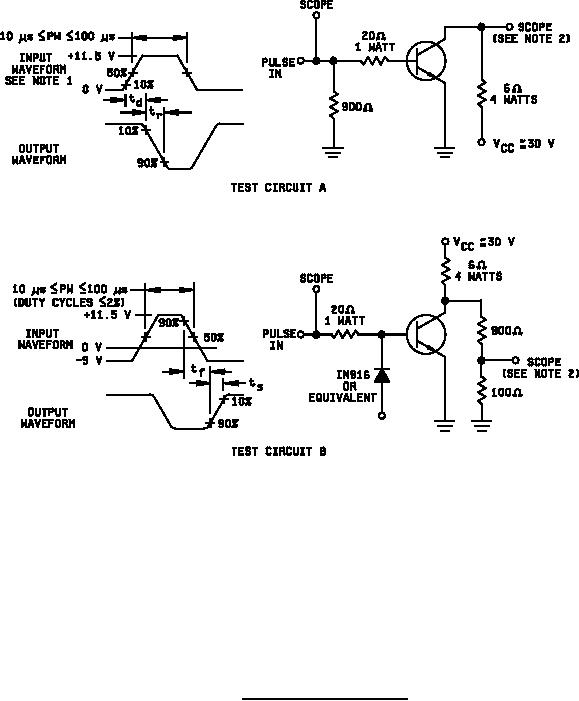

NOTES:
1.  The input waveform is supplied by a pulse generator with the following characteristics: tr ≤ 20.0 ns,
tf ≤ 1 µs, 10 µs ≤ PW ≤ 100 µs, ZOUT = 50Ω, duty cycle ≤ 2 percent.
2.  Output waveforms are monitored on an oscilloscope with the following characteristics: tr ≤ 5 ns,
ZIN ≥ 100 kΩ, CIN ≤ 12 pF.
3.  Test circuit A for td and tr; test circuit B for ts and tf.
FIGURE 4. Pulse response test circuits.
15
