MIL-PRF-19500-505 Semiconductor Device, Darlington Transistor, Pnp, Silicon, Power, Types 2N6286 And 2N6287, Jan, Jantx, And JantxvThis specification covers the performance requirements for PNP, Darlington, power transistors. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/505E

NOTES:

1. The input waveform is supplied by a pulse generator with the following characteristics: tr  20 ns, tf  20 ns,

Zout = 50 , PW = 23 s, duty cycle  2 percent.

2. The output waveform is monitored on a sampling oscilloscope with Zin  20 M, Cin  11.5 pF, tr  2 ns.

3. Resistors shall be noninductive types.

4. The dc power supplies may require additional by-passing in order to minimize ringing.

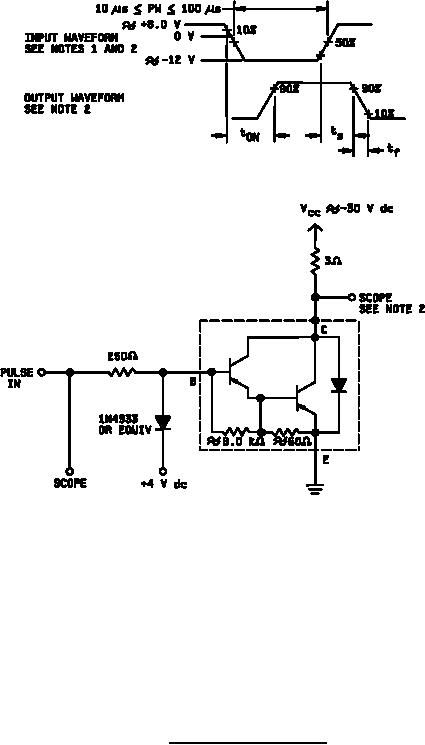

FIGURE 2. Pulse response test circuit.
