MIL-PRF-19500/515D
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.231
.235
5.87
5.97
C
.231
.235
5.87
5.97
NOTES:
1.
Dimensions are in inches.
* 2.
Millimeters are given for general information only.
Unless otherwise specified, tolerance is ±.005 inches (0.13 mm).
3.
4.
The physical characteristics of the die are:
Thickness: .008 inch (0.20 mm) to .012 inch (0.30 mm).
Top metal: Aluminum 40,000 Å minimum, 50,000 Å nominal.
Back metal: Gold 2,500 Å minimum, 3,000 Å nominal.
Back side: Collector.
Bonding pad: B = .016 inch (0.41 mm) x .060 inch (1.52 mm).
E = .016 inch (0.41 mm) x .070 inch (1.78 mm).

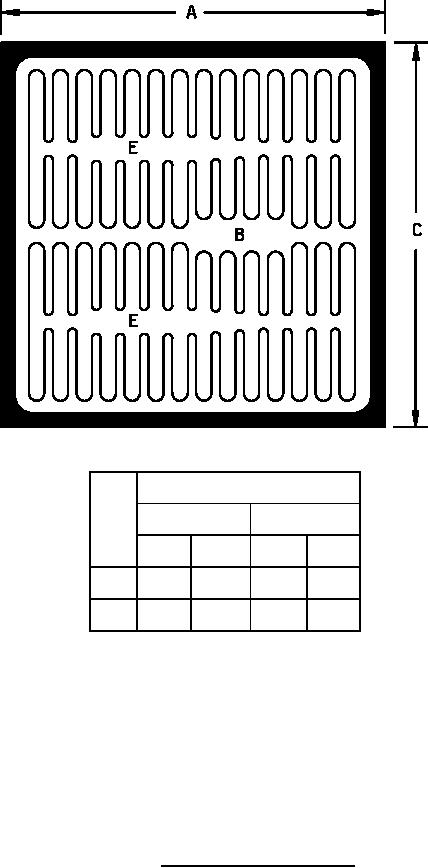

FIGURE 2 Physical dimensions JANHC die.
4
