MIL-PRF-19500-516 Semiconductor Device, Diode Silicon, Bipolar Transient Voltage Suppressor, Types 1N6102 Through 1N6137, 1N6102A Through 1N6137A, 1N6138 Through 1N6173, 1N6138A Through 1N6173A, 1N6102Us Through 1N6137Us, 1N6102Aus Through 1N6137Aus, 1N6138Us Through 1N6173Us, 1N6138Aus Through 1N6173Aus, 1N6102Urs Through 1N6137Urs, 1N6102Aurs Through 1N6137Aurs, 1N6138Urs Through 1N617...This specification covers the performance requirements for bipolar 500 watt and 1,500 watt peak pulse power transient voltage suppressor diodes. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for die. The suffix "A" denotes a five percent voltage tolerance.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-19500/516F

URS

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Dimensions are pre-solder dip.

4. One end-cap shall be square and the other end-cap shall be round.

5. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

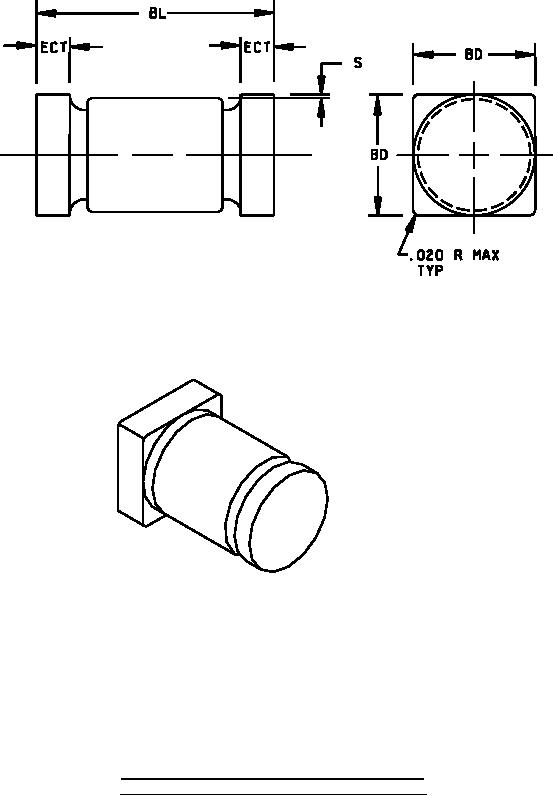

* FIGURE 3. Semiconductor device, diode 1N6102URS through

1N6173URS, 1N6102AURS through 1N6173AURS.
