MIL-PRF-19500-627 Semiconductor Device, Diode, Silicon, Ultra-Fast Recovery, Power Rectifier, 1N6688, 1N6689, 1N6688Us, 1N6689Us Jantx, Jantxv, And JansThis specification covers the performance requirements for a silicon, ultra-fast recovery, semiconductor power rectifier diode. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/627C

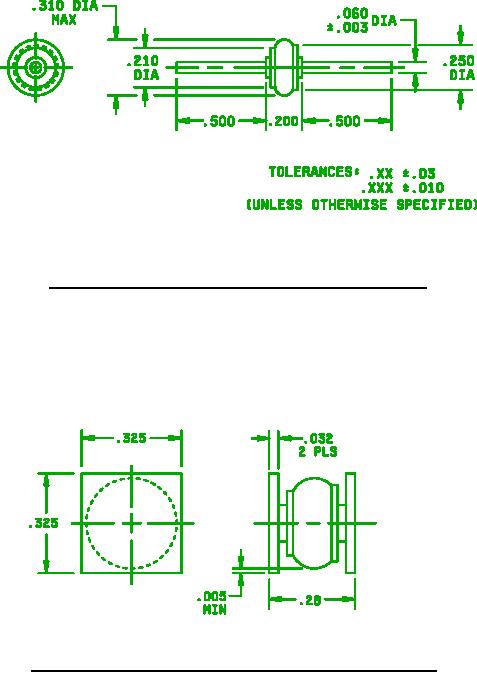

FIGURE 1. Physical dimensions and configuration for 1N6688 and 1N6689.
FIGURE 2. Physical dimensions for surface mount devices (1N6688US and 1N6689US).
