MIL-PRF-19500-629 Semiconductor Device, Hermetic, Diode, Silicon, Rectifier, Schottky Barrier, Types 1N6702 And 1N6702Us, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for silicon, Schottky barrier rectifier diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500, and two levels of product assurance for each unencapsulated die \(element evaluation\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/629C
Symbol
Dimensions
Notes
Inches
Millimeters
Min
Max
Min
Max
LD
.047
.054
1.19
1.37
BD
.145
.185
3.68
4.70
3
BL
.150
.300
3.81
7.62
LL
1.000
1.300
25.40
33.02
L1
.050
1.27
4
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Symbol BD shall be measured at the largest diameter.
4. Lead diameter is not controlled in this zone to allow for flash, lead finish build-up, and mirror
irregularities other than heat slugs.

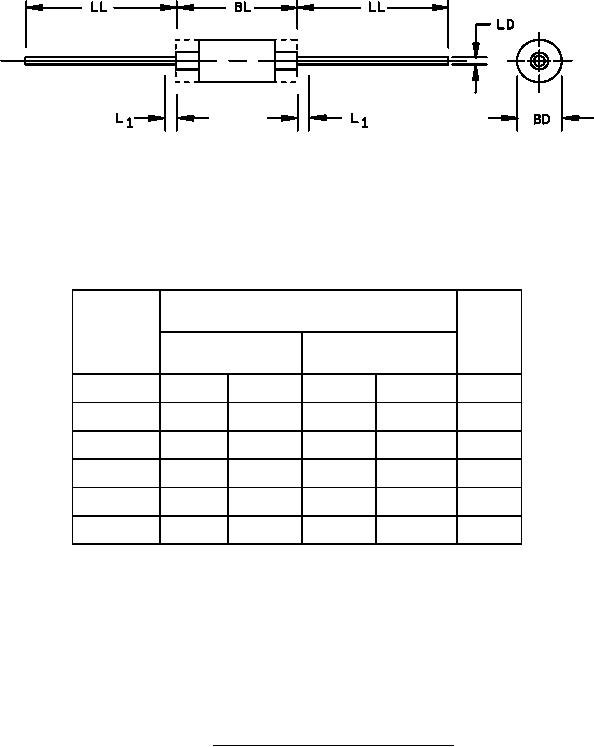

FIGURE 1. Physical dimensions (similar to DO­41).
3
