MIL-PRF-19500/228R
Dimensions
Symbol
Notes
Inches
Millimeters
Min
Max
Min
Max
BD
.060
.110
1.52
2.79
4
BL
.125
.205
3.18
5.21
3
LD
.025
.034
0.64
0.86
3
LL
.600
1.500
15.24
38.10
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimension BL shall include the entire body including slugs and sections of the lead over which the diameter is
uncontrolled. This uncontrolled area is defined as the zone between the edge of the diode body and extending
.050 inch (1.27 mm) onto the leads.
4. Dimension BD shall be measured at the largest diameter.
5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

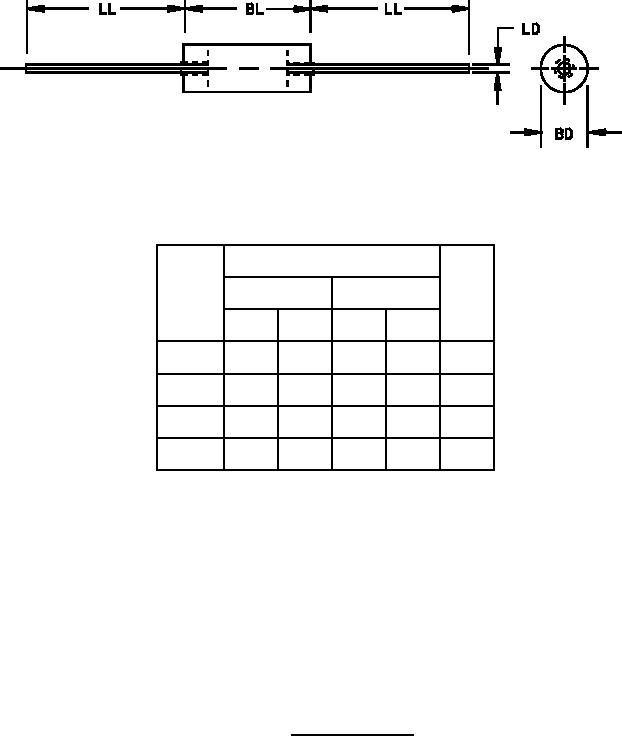

FIGURE 1. Physical dimensions.
3
