MIL-PRF-19500/291U

Chip size:

.023 x .023 inch �.002 inch (0.584 mm x 0.584 mm �0.0508 mm).

.010 �.0015 inch (0.254 mm �0.038 mm).

Chip thickness:

Top metal:

Aluminum 15,000 � minimum, 18,000 � nominal.

Back metal:

A. Al/Ti/Ni/Ag 15k�/5k�/10k�/10k�.

B. Gold 2.5 k� minimum, 3.0 k� nominal.

C. Eutectic Die Mount - No metal.

SI3N4 2k� minimum, 2.2k nominal.

5. Glassivation:

6. Backside:

Collector.

7. Bonding pad:

B = .0042 x .0042 inch (0.107 mm x 0.107 mm).

E = .0042 x .0042 inch (0.107 mm x 0.107 mm).

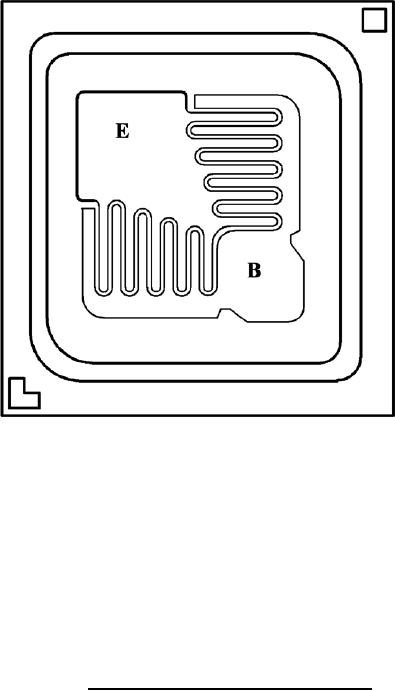

FIGURE 4. JANHC and JANKC (B-version) die dimensions.
