MIL-PRF-19500-291 Semiconductor Device, Transistor, Pnp, Silicon, Switching, Types 2N2906A, 2N2906Al, 2N2907A, 2N2907Al, 2N2906Aua, 2N2907Aua, 2N2906Aub, 2N2906Aubc, 2N2907Aub, 2N2907Aubc, 2N2906Aubn, 2N2906Aubcn, 2N2907Aubn, And 2N2907Aubcn, Jan, Jantx, Jantxv, Jans, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh Janhc, Jankc, Jankcm, Jankcd, Jankcp, Jankcl, Jankcr, Jankcf, Jank...This specification covers the performance requirements for PNP, silicon, switching transistors. Five levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500 and two levels of product assurance are provided for each unencapsulated device type. Radiation hardness assurance \(RHA\) level designators "M", "D", "P", "L" "R", "F", "G", and "H" are appended to the device prefix to identify devices which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/291U
E
B
1.
Die size:
.020 x .020 inch square (0.508 mm x 0.508 mm).
.008 ±.0016 inch (0.203 mm ±0.041 mm).
2.
Die thickness:
3.
Base pad:
.004 x .004 inch (0.101 mm x 0.101 mm).
4.
Emitter pad:
.004 x .004 inch (0.101 mm x 0.101 mm).
Gold, 6,500 ±1,950 Å.
5.
Back metal
Aluminum, 20,000 ±2,000 Å.
6.
Top metal:
7.
Back side:
Collector.
SiO2, 7,500 ±1,500 Å.
8.
Glassivation:

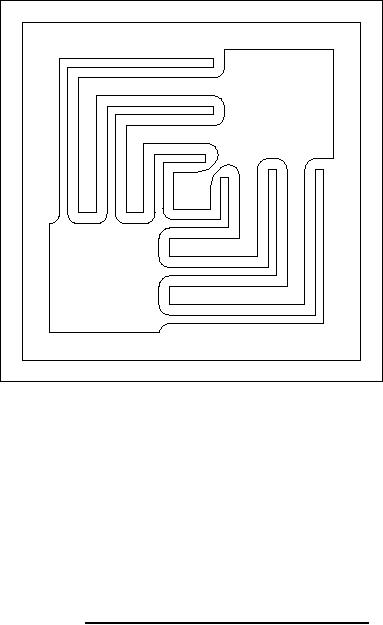

FIGURE 5. JANHC and JANKC (D-version) die dimensions.
8
