MIL-PRF-19500/308D

NOTES:

1. Monitoring oscilloscope requirements: tr ≤ 14 ns, Rin ≥ 9 MΩ, Cin ≤ 12 pF, Lin (series) ≤ 0.5 �H.

2. SW characteristics: Mercury-wetted make-before-break relay switched at a 60 Hz rate. The relay should

conduct for approximately 640 �s and be open for approximately 7.7 ms. (C.P. Clare HGP 1004 or

equivalent.)

3. Voltage source characteristics: Output impedance ≤ 0.5 Ω from 0 to 2 kHz.

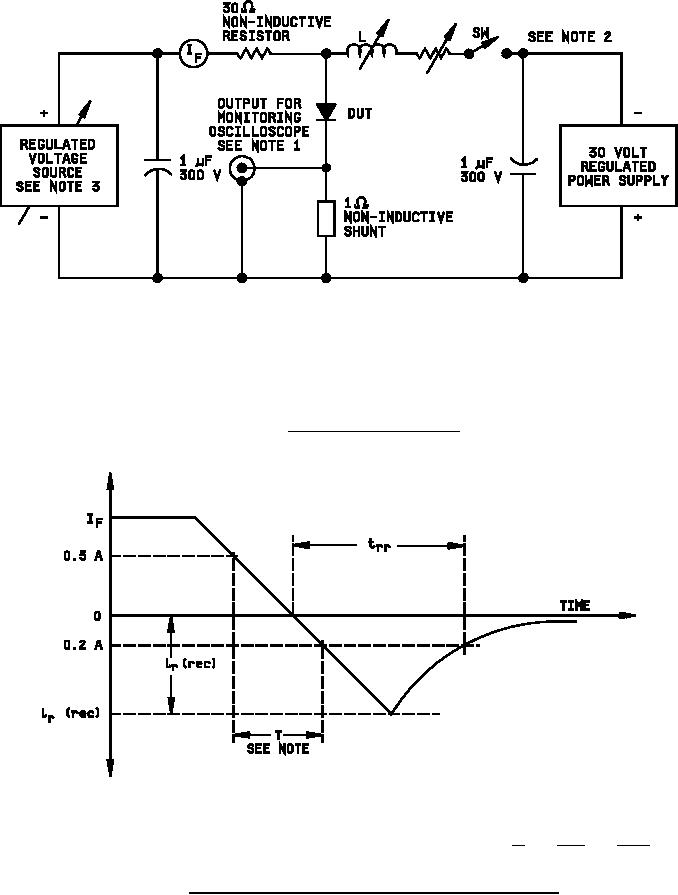

FIGURE 2. Reverse recovery test circuit.

NOTE:

- 0.7

- 25 A

Adjust L and R in accordance with 4.5.2 to achieve T = 0.028 �s (L = 1.2 �H). Then di

�s

.028

FIGURE 3. Reverse recovery current waveform through device under test.
