MIL-PRF-19500-384 Semiconductor Device, Transistor, Npn, Silicon High-Power, Types 2N3584, 2N3585, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistors. Three levels of product assurance are provided for this device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/384H
Mercury switch: Clare mercury relay, model number HGP - 1004, or equivalent.
Oscilloscope:  Hewlett Packard oscilloscope, model number 130B, or equivalent.
Switch position
Test
L
Reject criteria
100 µH
SB occurs
1.
SBICEX
500 µH
SB occurs
2.
SBICER
20 mH
V(BR)CEO < limit
3.
V(BR)CEO
4.
V(BR)CER
5 mH
V(BR)CER < limit
R1 = 20Ω, 0.5 W
V1 = -4 V
R2 = 50Ω, 0.5 W
V2 = 15 V
R3 = 1Ω, 0.5 W
V3 = 0 to 50 V, 3 A
R4 = 200Ω, 0.5 W
R5 = 27Ω, 10 W

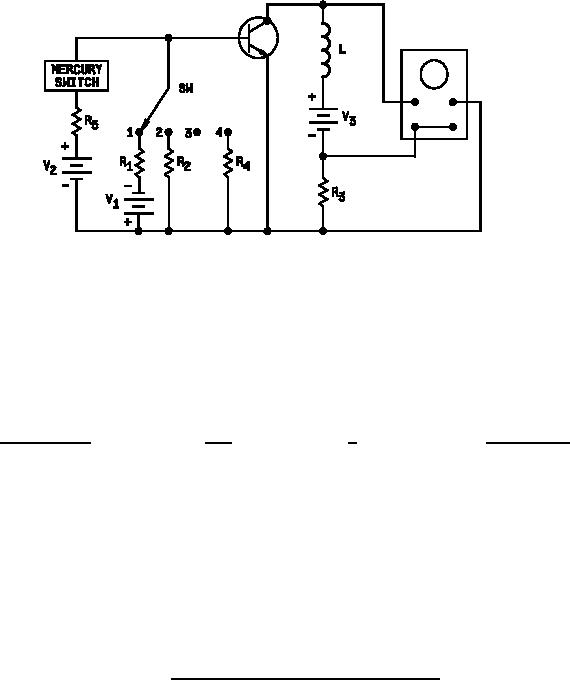

FIGURE 3. SBICEX , SBICER, V(BR)CEO, V(BR)CER, test circuit.
13
