MIL-PRF-19500-396 Semiconductor Device, Transistor, Pnp, Silicon, Switching, Types 2N3762, 2N3762L, 2N3762U4, 2N3762Ua, 2N3763, 2N3763L, 2N3763U4, 2N3763Ua, 2N3764, And 2N3765, Jan, Jantx, Jantxv, Jans, Jansm, Jansd, Jansp, Jansl, Jansr, Jansf, Jansg, Jansh Janhca, Jankca, Jankcam, Jankcad, Jankcap, Jankcal, Jankcar, Jankcaf, Jankcag, And JankcahThis specification covers the performance requirements for PNP silicon switching transistors. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500 and two levels of product assurance are provided for each unencapsulated device type. RHA level designators "M", "D", "P", "L", "R", "F", "G", and "H" are appended to the device prefix to identify devices, which have passed RHA requirements.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/396L
Dimensions
Ltr.
Inches
Millimeters
Notes
Min
Max
Min
Max
CD
.178
.195
4.52
4.95
TO-46
CH
.065
.085
1.65
2.16
HD
.209
.230
5.31
5.84
LC
.100 TP
2.54 TP
5
LD
.016
.021
0.41
0.53
LL
.500
.750
12.70  19.05
6
LU
.016
.019
0.41
0.48
6
.050
1.27
6
L1
.250
6.35
6
L2
Q
.040
1.02
3
TL
.028
.048
0.71
1.22
8
TW
.036
.046
0.91
1.17
4
r
.010
0.25
9
α
45° TP
45° TP
5
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Symbol TL is measured from HD maximum.
4. Details of outline in this zone are optional.
5. Leads at gauge plane .054 inch (1.37 mm) +.001 inch (0.03 mm) -.000 inch (0.00 mm) below seating plane
shall be within .007 inch (0.18 mm) radius of TP relative to tab. Device may be measured by direct
methods or by gauge.
6. Symbol LU applies between L1 and L2. Dimension LD applies between L2 and LL minimum.
7. Lead number three is electrically connected to case.
8. Beyond r maximum, TW shall be held for a minimum length of .011 inch (0.28 mm).
9. Symbol r applied to both inside corners of tab.
10. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
11. Lead 1 is emitter, lead 2 is base, and lead 3 is collector.

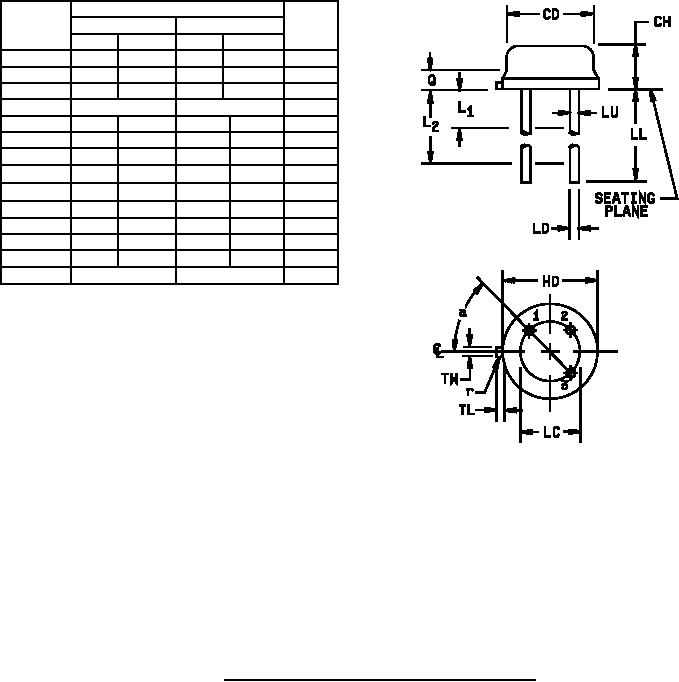

FIGURE 2. Physical dimensions - 2N3764 and 2N3765 (TO-46).
