MIL-PRF-19500/396L
NOTES:
1. Chip size ...............
.040 inch (1.02 mm) x .040 inch (1.02 mm) ±.001 inch (0.03 mm).
2. Chip thickness ......
.010 ±.0015 inch.
3. Top metal ..............
Aluminum 15,000Å minimum, 18,000Å nominal.
4. Back metal ............
Gold 3,500Å minimum, 5,000Å nominal.
5. Backside ...............
Collector.
6. Bonding pad..........
B = .006 inch (0.15 mm) x .008 inch (0.2 mm),
E = .006 inch (0.15 mm) x .004 inch (0.1 mm).

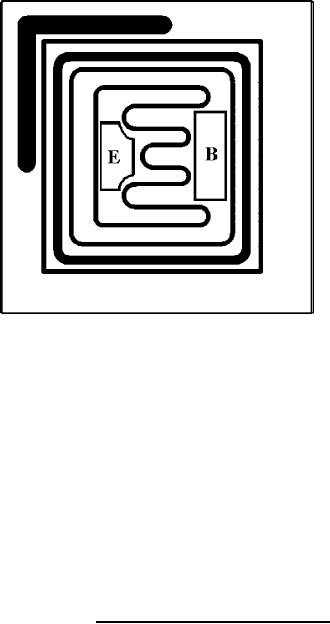

FIGURE 5. JANHCA and JANKCA die dimensions.
7
