MIL-PRF-19500/397J
Letter
Dimensions
Inches
Millimeters
Min
Max
Min
Max
A
.041
.041
1.04
1.04
C
.041
.041
1.04
1.04
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. The physical characteristics of the die are:
Thickness:
.006 inch (0.15 mm) to .012 inch (0.30 mm).
Top metal:
Aluminum 17,500 Å minimum, 20,000 Å nominal.
Back metal:
Gold 2,500 Å minimum, 3,000 Å nominal.
Back side:
Collector.
Bonding pad:
B = .004 inch (0.10 mm) x .005 inch (0.13 mm).
E = .004 inch (0.10 mm) x .0055 inch (0.14 mm).
4. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

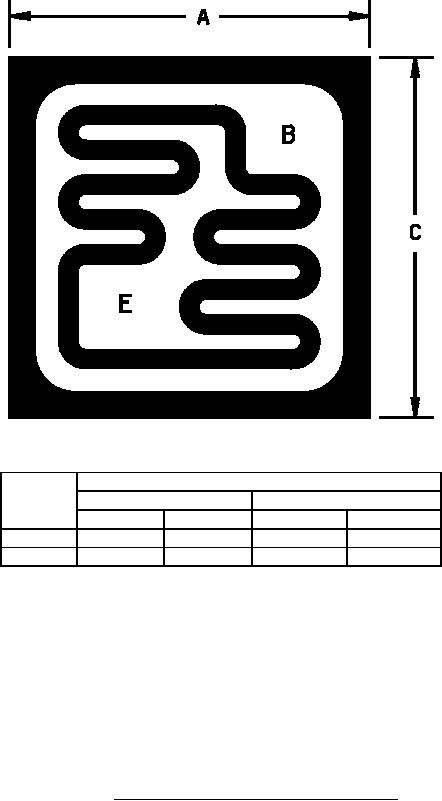

FIGURE 3. JANHC and JANKC (A-version) die dimensions.
5
