MIL-PRF-19500-397 Semiconductor Device, Transistor, Pnp, Silicon, Types 2N3743, 2N3743U4, 2N4930, 2N4930U4, 2N4931, And 2N4931U4, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for PNP, silicon, high-voltage transistor. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance for die are provided for each unencapsulated device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/397J
NOTES:
1. Chip size:
40 x 40 mils ±1 mil.
2. Chip thickness:
10 ±1.5 mil.
3. Top metal:
Aluminum 15,000Å minimum, 18,000Å nominal.
4. Back metal:
A. Al/Ti/Ni/Ag 12kÅ/3kÅ/7kÅ/7kÅ min., 15kÅ/5kÅ/10kÅ/10kÅ nom.
B. Gold 2,500Å minimum, 3,000Å nominal.
C. Eutectic Mount ­ No Gold.
5. Backside:
Collector.
6. Bonding pad:
B = 6 x 8 mils, E = 6 x 4 mils.

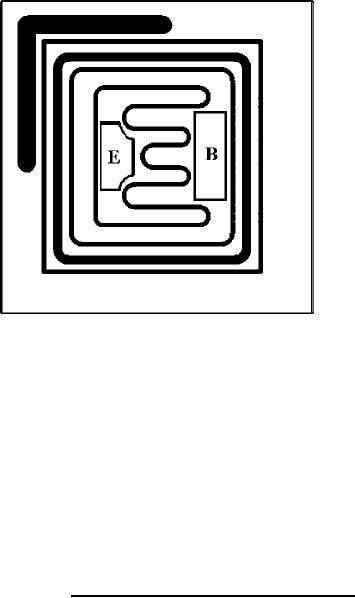

FIGURE 4. JANHC and JANKC (B-version) die dimensions.
