MIL-PRF-19500-402 Semiconductor Device, Transistor, Npn, Silicon, Power, Type 2N3739, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN, silicon, power transistors. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/402F

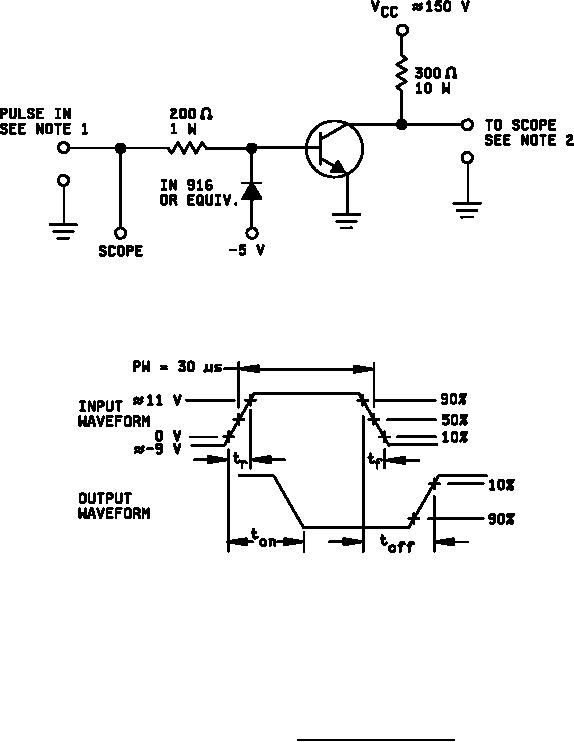

NOTES:
1. The rise time (tr) and fall time (tf) of the applied pulse shall be each 20 ns; duty cycle 1 percent; generator
source impedance shall be 50 ohms.
2. Output sampling oscilloscope: Zin 100 k; Cin 50 pF; rise time 2.0 ns.
FIGURE 3. Pulse response test circuit.
12
