MIL-PRF-19500/434E

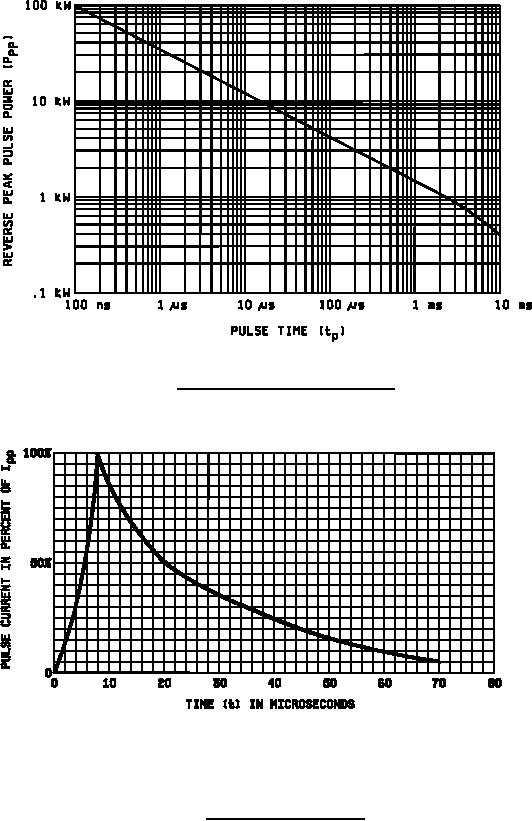

FIGURE 3. Peak pulse power versus pulse time.
NOTE: Pulse time duration is defined as that point where the pulse current
decays to 50 percent of IPP. (Rise time to 100 percent of IPP = 8 µs).
FIGURE 4. Current impulse waveform.
11
