MIL-PRF-19500/434E

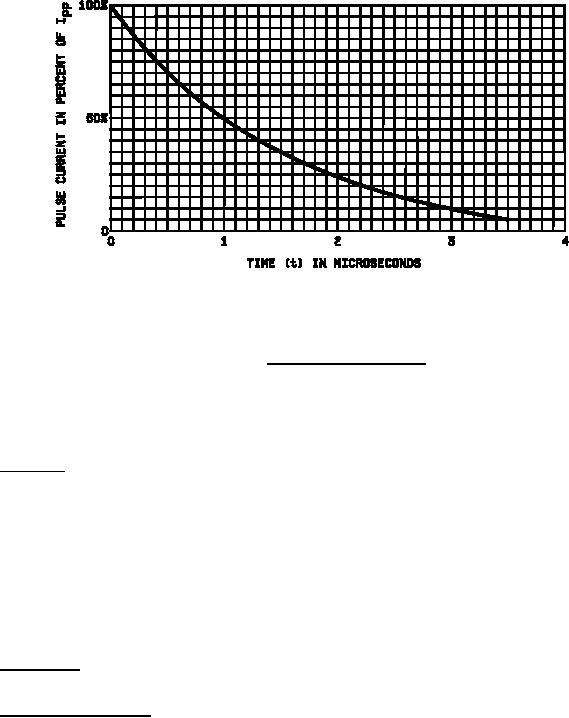

NOTE: Pulse time duration is defined as that point where the pulse current
decays to 50 percent of IPP. (Rise time to 100 percent of IPP = 10 µs).
FIGURE 5. Current impulse waveform.
5. PACKAGING
5.1 Packaging. For acquisition purposes, the packaging requirements shall be as specified in the contract or
order (see 6.2). When packaging of materiel is to be performed by DoD or in-house contractor personnel, these
personnel need to contact the responsible packaging activity to ascertain packaging requirements. Packaging
requirements are maintained by the Inventory Control Point's packaging activities within the Military Service or
Defense Agency, or within the Military Service's system commands. Packaging data retrieval is available from the
managing Military Department's or Defense Agency's automated packaging files, CD-ROM products, or by
contacting the responsible packaging activity.
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.
The notes specified in MIL-PRF-19500 are applicable to this specification.)
6.1 Intended use. Semiconductors conforming to this specification are intended for original equipment design
applications and logistic support of existing equipment.
6.2 Acquisition requirements. Acquisition documents should specify the following:
a. Title, number, and date of this specification.
b. Packaging requirements (see 5.1).
c. Lead finish (see 3.4.1).
d. Product assurance level and type designator.
12
