MIL-PRF-19500-435 Semiconductor Device, Diode, Silicon, Low-Noise Voltage Regulator, Types 1N4099-1 Through 1N4135-1, 1N4614-1 Through 1N4627-1, 1N4099Ur-1 Through 1N4135Ur-1, 1N4614Ur-1 Through 1N4627Ur-1, \(Ub, Ub2, Ub2R, Ubca, Ubd, And Ubcc\), C And D Tolerance Suffix Devices, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for 500 milliwatt, silicon, low-noise, voltage regulator diodes with voltage tolerances of 5 percent, 2 percent, and 1 percent. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500, and two levels of product assurance for each unencapsulated device type \(die\). For JANHC and JANKC quality levels see 6.5.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/435M

Dimensions

Ltr

Inches

Millimeters

Notes

Min

Max

Min

Max

.056

.090

1.42

2.29

.140

.200

3.56

5.08

.018

.022

0.46

0.56

1.000

1.500

25.40

38.10

LL1

.050

1.27

NOTES:

1. Dimensions are in inches.

2. Millimeter equivalents are given for general information only.

3. Package contour optional within BD and length BL. Heat slugs, if any, shall be

included within this cylinder but shall not be subject to minimum limit of BD. The BL

dimension shall include the entire body including slugs.

4. Within this zone lead, diameter may vary to allow for lead finishes and irregularities

other than heat slugs.

5. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

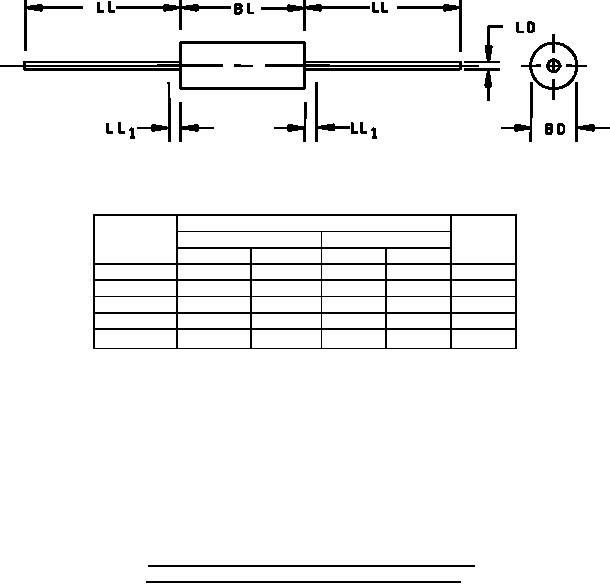

FIGURE 1. Semiconductor device, diode, types 1N4099-1 through

1N4135-1 and 1N4614-1 through 1N4627-1 (DO-35).
