MIL-PRF-19500/448F

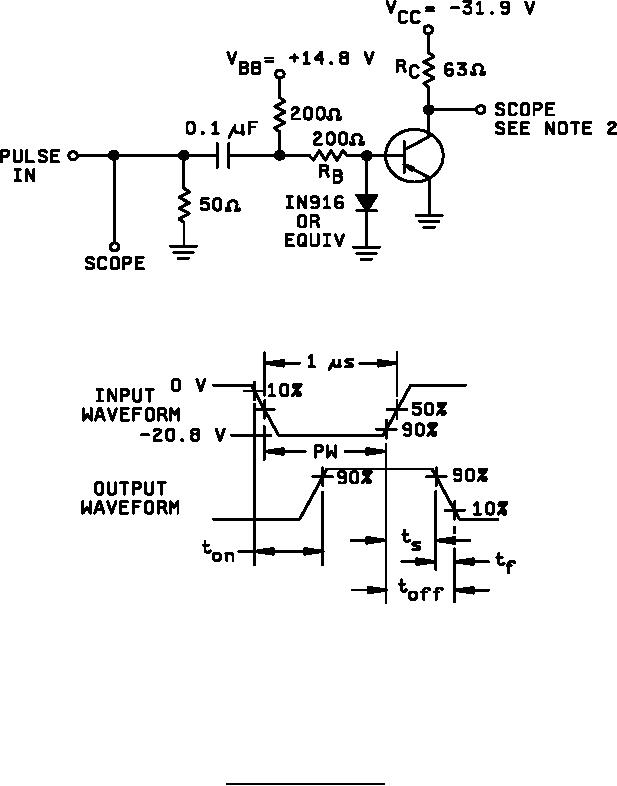

NOTES:
1. The rise time (tr) of the applied pulse shall be ≤ 2.0 ns; duty cycle ≤ 2 percent; generator source impedance
shall be 50 ohms.
2. Output sampling oscilloscope: Zin ≥ 100 kΩ; Cin ≤ 12 pF; rise time ≤ 0.2 ns.
3. To obtain data for curves, voltage levels are approximately as shown, RB and RC are varied.
FIGURE 14. Pulse response test circuit.
23
