MIL-PRF-19500-452 Semiconductor Device, Diode, Silicon, Temperature Compensated, Voltage Reference, Types 1N4565A-1 Through 1N4584A-1, And 1N4565Aur-1 Through 1N4584Aur-1, Jan, Jantx, Jantxv, Jans, Janhc, And Jankc, Radiation Hardened \(Total Dose Only\) Types Jantxvm, D, L, R, F, G, H; Jansm, D, L, R, F, G, H, Janhcm, D, L, R, F, G, H; And Jankcm, D, L, R, F, G, HThis specification covers the performance requirements for 6.4 volts ┬▒5 percent, silicon, low bias current, temperature compensated, voltage-reference diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500, and two levels of product assurance for each unencapsulated device type die. Seven levels of radiation hardened \(total dose only\) product assurance are provided for each encapsulated device type, and two levels of product assurance for each unencapsulated device type die as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/452J
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
A
.024
.037
0.61
0.94
B
.014
.029
0.36
0.74
Design data
Metallization:
Top: (Anode)
Al
Back: (Cathode)
Au
Circuit layout data:
For zener operation, cathode must be operated positive with respect to anode.
Al thickness
40,000Å minimum.
Gold thickness
5,000Å minimum.
.010 inch (0.25 mm) ±.002 inch (0.05 mm).
Chip thickness
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information.
3. In accordance with ASME Y14.5M, diameters are equivalent to x symbology.

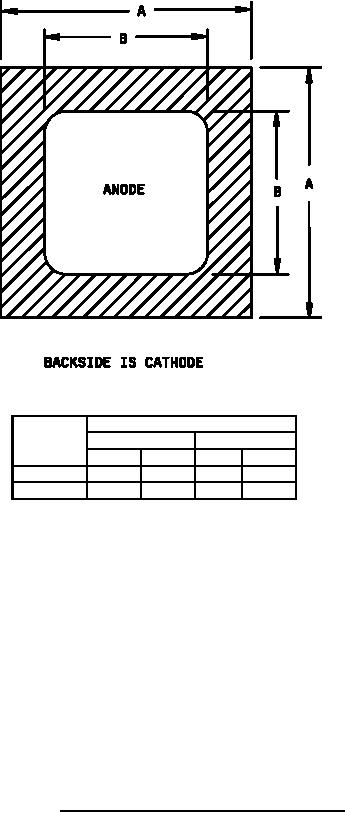

FIGURE 5. JANHC and JANKC (C-version) die dimensions.
7
