MIL-PRF-19500/455K
Dimensions
Ltr
Inches
Millimeters
Notes
Min
Max
Min
Max
CH
.250
.340
6.35
8.64
LD
.028
.034
0.71
0.86
7,9
CD
.470
.500
11.94
12.70
2
PS
.190
.210
4.83
5.33
3
PS1
.093
.107
2.36
2.72
3
HT
.050
.075
1.27
1.91
2, 5
LL
.360
.500
9.14
12.70
7
L1
.050
1.27
4
MHD
.142
.152
3.61
3.86
MHS
.958
.962
24.33
24.43
HR
.350
8.89
HR1
.115
.145
2.92
3.68
S
.570
.590
14.48
14.99
3
NOTES:
1.
Dimensions are in inches. Millimeters are given for general information only.
2.
Body contour is optional within zone defined by CD.
3.
These dimensions shall be measured at points .050 inch (1.27 mm) to .055 inch (1.40 mm) below seating
plane. When gauge is not used, measurement shall be made at seating plane.
4.
Within this zone the lead diameter may vary to allow for lead finishes and irregularities.
5.
HT dimension does not include sealing flanges.
6.
The seating plane of header shall be flat within .001 inch (0.025 mm), concave to .004 inch (0.101 mm),
convex inside a .520 inch (13.20 mm) diameter circle on the center of the header, and flat within .001
inch (0.025 mm), concave to .006 inch (0.152 mm), convex overall.
7.
Both terminals.
8.
The collector shall be electrically connected to the case.
9.
LD applies between L1 and LL. Lead diameter shall not exceed twice LD within L1.
10.
Pin 1 is the emitter, pin 2 is the base.
In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
11.

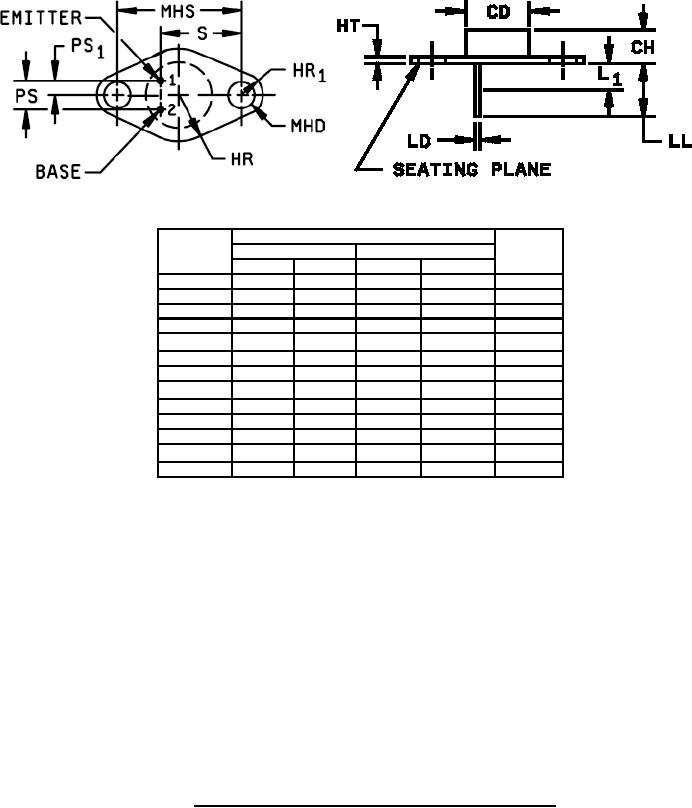

FIGURE 1. Physical dimensions of transistor types 2N5664 and 2N5665.
