MIL-PRF-19500/455K
NOTES:
1. The input waveform is supplied by a pulse generator with the following characteristics: tr ≤ 15 ns, tf ≤ 15 ns,
Zout = 50 ohm, PW = 10 µs, duty cycle ≤ 2 percent.
2. Output waveforms are monitored on an oscilloscope with the following characteristics: tr ≤ 15 ns,
Zin ≥ 10 M Ω, Cin ≤ 11.5 pF.
3. Resistors shall be noninductive types.
4. The dc power supplies may require additional bypassing in order to minimize ringing.
5. The input pulse voltages and supply voltages (-4 V dc and +100 V dc) are nominal and shall be adjusted to
obtain IB1 = - IB2 = 30 mA and IC = 1 A.
6. An equivalent circuit may be used.
7. 0.02 µF capacitor may be removed during voltage adjustments.

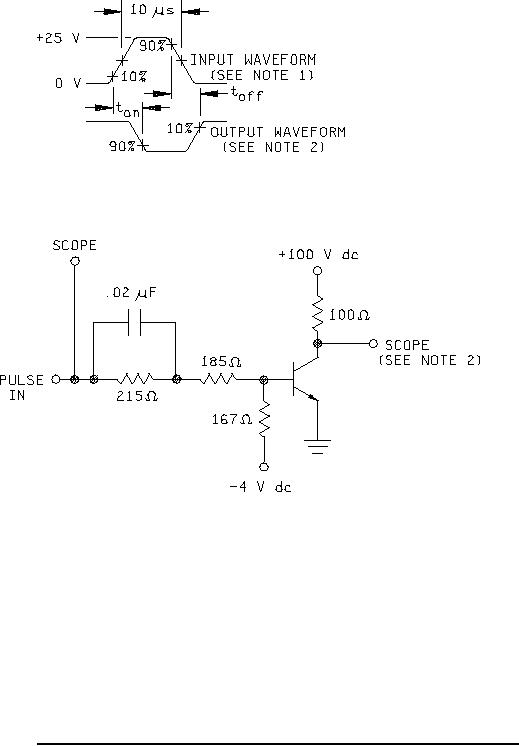

FIGURE 16. Pulse response test circuit for types 2N5664, 2N5666, 2N5666S, and 2N5666U3.
31
