MIL-PRF-19500/474G
Inches
Millimeters
Symbol
Notes
Min
Max
Min
Max
BL
.370
.445
9.40
10.16
BW
.235
.275
5.97
6.60
2, 10
BW1
.125
3.18
BW2
.030
0.76
CH
.045
.095
1.14
2.41
LL
.250
.370
6.35
9.40
LO
.005
0.13
11
LO2
.005
.050
0.13
1.27
2
LS
.050 BSC
1.27 BSC
3, 5
LT
.003
.006
0.08
0.15
6
LW
.015
.022
0.38
0.48
6
NOTES:
1. Index area: A notch or a pin 1 identification mark shall be located adjacent to pin 1 and shall be within the
shaded area limited by pin 3 and package centerline. The manufacturer's identification shall not be used as
a pin 1 identification mark.
2. This dimension allows for off-center lid, meniscus, and glass overrun.
3. The true position pin spacing is located within ±.005 inch (0.13 mm) of its true longitudinal position relative to
pins 1 and 14.
4. Dimension LO2 shall be measured at the point of exit of the lead from the body.
5. Twelve places.
6. All leads: Dimensions are pre-solder dip.
7. Dimensions are in inches.
8. Millimeters are given for general information only.
9. If this configuration is used, no organic or polymeric materials shall be molded to the bottom of the package
to cover the leads.
10. Lead configuration is optional within dimension BW except dimensions LW and LT apply.
11. Applies to all four corners.

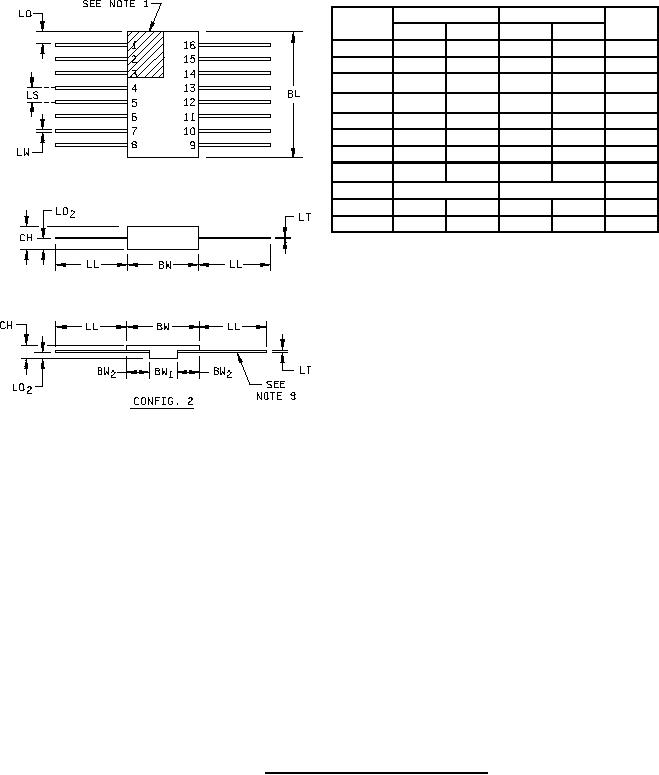

* FIGURE 8. Physical dimensions for type 1N6510.
