MIL-PRF-19500/474G
Inches
Millimeters
Symbol
Notes
Min
Max
Min
Max
BL
.280
7.11
4
.235
BW
.260
5.97
6.60
CH
.030 .095
0.76
2.41
LL
.250 .370
6.35
9.40
LO2
.010 .040
0.25
1.02
3
LO
.005
0.13
8
LO3
.004
0.10
9
LS
.050 BSC
1.27 BSC
6
LT
.003 .006
0.08
0.15
5
LU
.280
7.11
4
LW
.010 .019
0.25
0.48
5
TL
.008 .015
0.20
0.38
1
NOTES:
This package is inactive and shall be replaced with the package on figure 3.
1. Index area: A notch or a pin 1 identification mark shall be located adjacent to pin 1 and shall be within the
shaded area shown. The manufacturer's identification shall not be used as a pin 1 identification mark.
Alternatively, a tab (dimensions TL) may be used to identify pin 1. This tab may be located on either side
as shown. If a pin 1 identification mark is used in addition to this tab, the minimum limit of dimension TL
does not apply.
2. Dimension LO2 shall be measured at the point of exit of the lead from the body. Dimension LO2 shall be
.0085 inch (0.216 mm) minimum when lead finish A is applied.
3. These dimensions allow for off-center lid, meniscus, and glass overrun.
4. The basic pin spacing is .050 inch (1.27 mm) between centerlines. Each pin centerline shall be located
within ±.005 inch (0.13 mm) of its exact longitudinal position relative to pins 1 and 14.
5. All leads: Increase maximum limit by .003 inch (0.08 mm) measured at the center of the flat, when lead
finish A is applied. Dimensions given are pre-solder dip.
6. Twelve places.
7. Applies to all four corners (lead numbers 2, 6, 9, and 13).
8. Dimensions LO may be .000 inch (0.00 mm) if lead numbers 2, 6, 9, and 13 bend toward the cavity of the
package within one lead width from the point of entry of the lead into the body.
9. Applies to lead numbers 1, 7, 8, and 14.
10. Lead configuration is optional within dimension BW except dimensions LT and LW apply.
11. Dimensions are in inches. Millimeters are given for general information only.

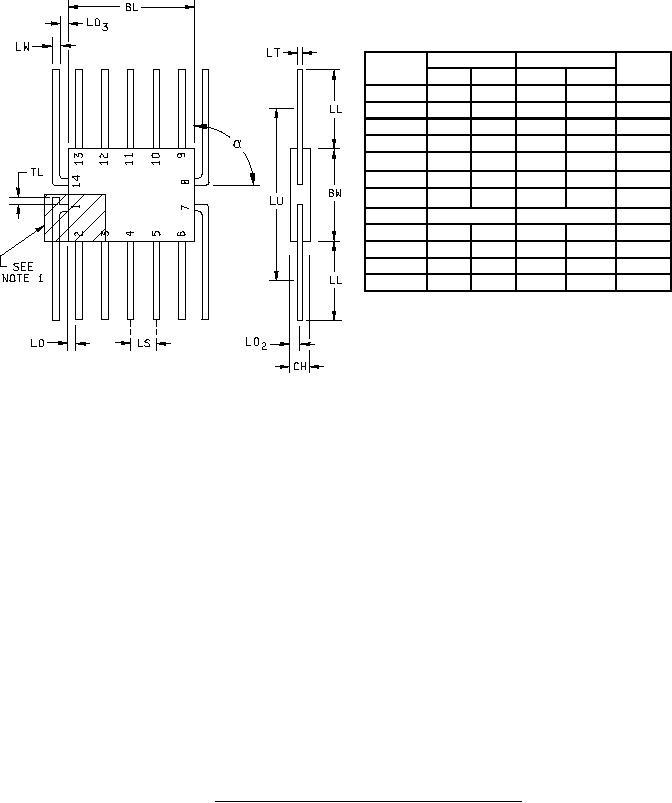

FIGURE 2. Physical dimensions for types 1N5774 and 1N6100.
