MIL-PRF-19500-488 Semiconductor Device, Transistor, Npn, Silicon, High-Power, Types 2N5671 And 2N5672, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, high-power transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/488E

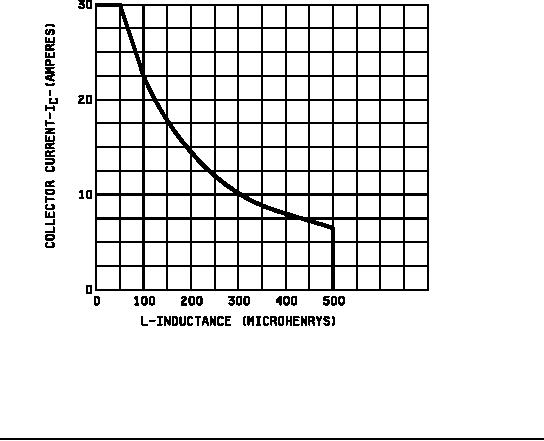

FIGURE 2. Safe operating area for switching between saturation and cutoff (unclamped inductive load).
