MIL-PRF-19500-488 Semiconductor Device, Transistor, Npn, Silicon, High-Power, Types 2N5671 And 2N5672, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, high-power transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/488E

NOTES:

1. The rise time (tr ) and fall time (tf) of the applied pulse shall be each  20 ns; duty cycle  2 percent;

generator source impedance shall be 50 ohms; pulse width = 20 s.

Output sampling oscilloscope: Zin  100 k; Cin  50 pF; rise time  20 ns.

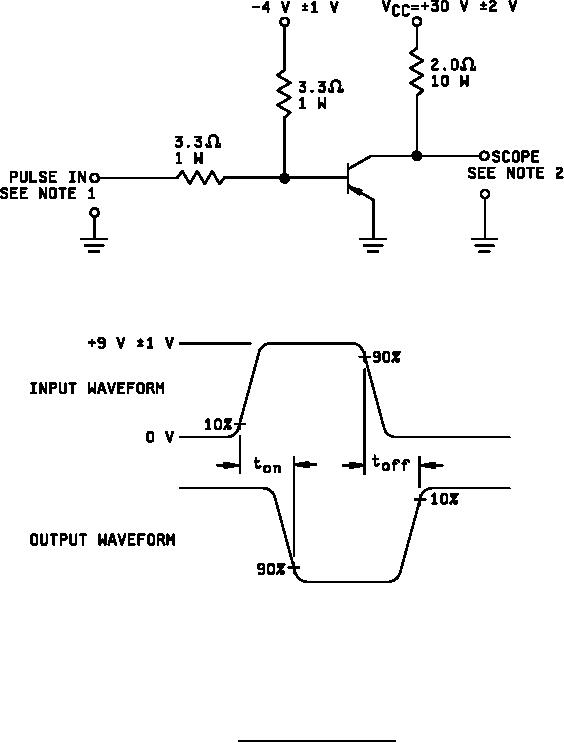

FIGURE 4. Pulse response test circuit.
