MIL-PRF-19500-488 Semiconductor Device, Transistor, Npn, Silicon, High-Power, Types 2N5671 And 2N5672, Jan, Jantx, Jantxv, And JansThis specification covers the performance requirements for NPN, silicon, high-power transistors. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/488E

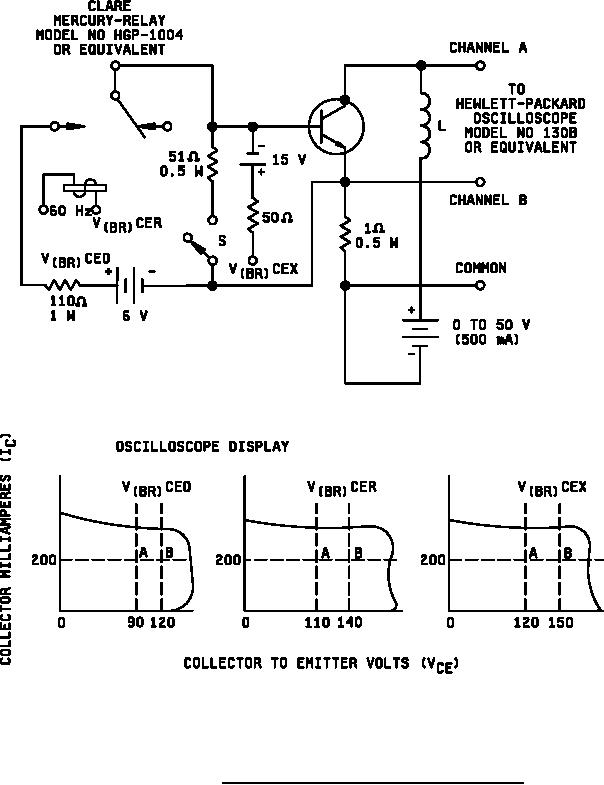

NOTE: V(BR)CEQ , V(BR)CER , V(BR)CEX , is acceptable when the trace falls to the right and above point "A" for type
2N5671. The trace shall fall to the right and above point "B" for type 2N5672.
FIGURE 3. V(BR)CEO , V(BR)CER , V(BR)CEX, measurement circuit.
13
