MIL-PRF-19500/507F
TIME (t) IN MILLISECONDS

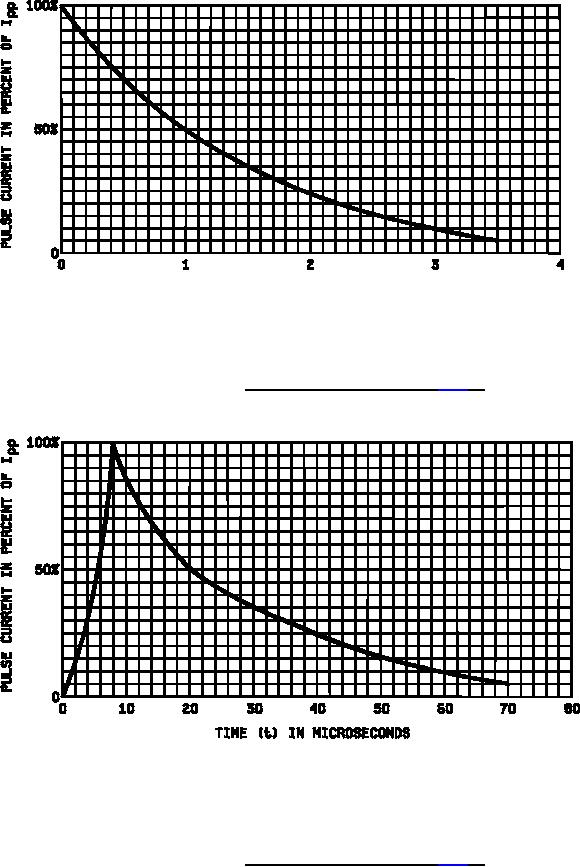

NOTE: Pulse time duration is defined as that point where the pulse current
decays to 50 percent of IPP. (Rise time to 100 percent of IPP = 10 µs).
FIGURE 4. Current impulse waveform (see 4.5.2.a).
NOTE: Pulse time duration is defined as that point where the pulse current
decays to 50 percent of IPP. (Rise time to 100 percent of IPP = 8 µs).
FIGURE 5. Current impulse waveform (see 4.5.2.b).
