MIL-PRF-19500/550C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.199 SQ
.201 SQ
5.054 SQ
5.105 SQ
B
.009
.011
0.229
0.279
A version
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for information only.
3. Back metal: Ti - Pd - Ag.
4. Top metal: Ti - Pd - Ag.
5. Metallization: Ti = 700 Å; Pd = 700 Å; Ag = 31,400 Å.
6. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

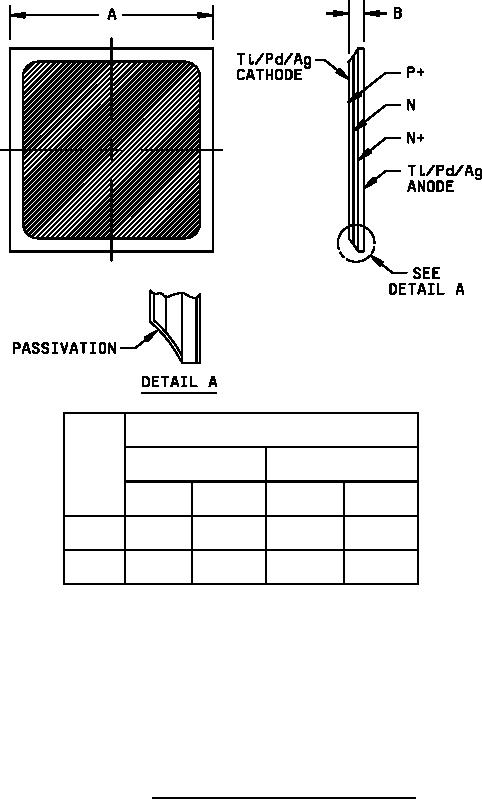

* FIGURE 2. Physical dimensions JANHCA and JANKCA.
5
