MIL-PRF-19500/550C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.196 SQ
.202 SQ
4.98 SQ
5.13 SQ
B
.177 SQ
.183 SQ
4.50 SQ
4.65 SQ
C
.006
.012
0.15
0.30
D version
NOTES:
1.  Dimensions are in inches.
2.  Millimeter equivalents are given for information only.
3.  Back (cathode) metal: Silver.
4.  Top (anode) metal: Aluminum.
5.  In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

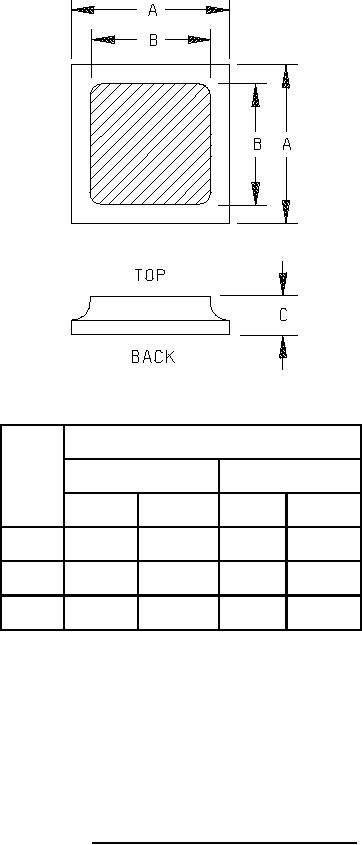

* FIGURE 5. Physical dimensions JANHCD and JANKCD.
8
