MIL-PRF-19500/550C
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
A
.191 SQ
.201 SQ
4.851 SQ
5.105 SQ
B
.173 SQ
.183 SQ
4.394 SQ
4.648 SQ
C
.009
.010
0.229
0.254
B version
NOTES:
1. Dimensions are in inches.
2. Millimeter equivalents are given for information only.
3. Back metal: Cr - Ni - Ag.
4. Top metal: Cr - Ni - Ag.
5. Metallization: Cr = 800 Å minimum, Ni = 1.5 Å minimum, Ag = 3,000 Å minimum.
6. In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.

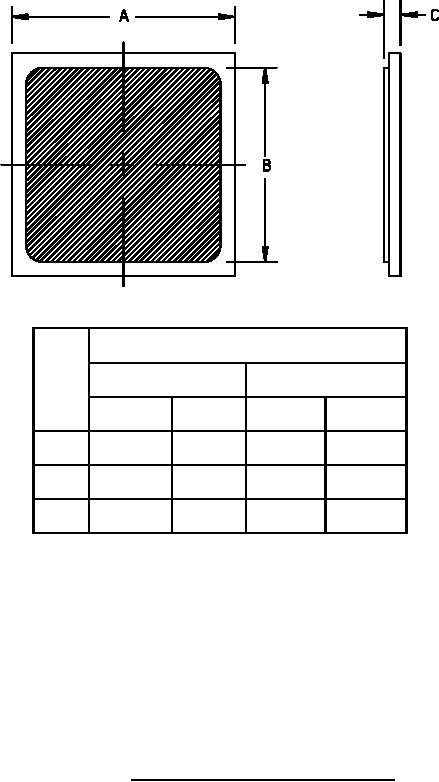

* FIGURE 3. Physical dimensions JANHCB and JANKCB.
