MIL-PRF-19500/554E
Input pulse
Rin = 50 ohms, 1 W
VG = 10 V dc
RS = 0.1 ohms, 1 W
VCC ≈ 10 V dc
RG = 50 ohms
P.W. ≈ 30 µs
L = 260 µH
Duty cycle ≤ 1 percent
T = IRF130/2N6756 or equivalent
PROCEDURES:
1. With S open, adjust pulse width to test current of 2 A across RS.
2. Close S, verify test current with current sense.
3. Read peak output voltage (see 4.5.4).

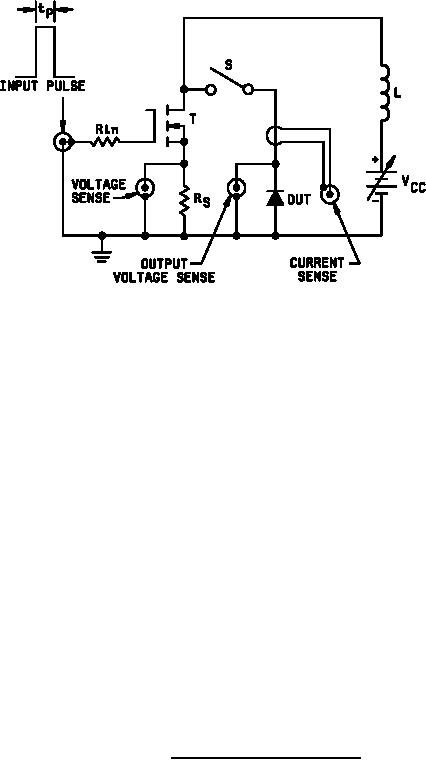

FIGURE 4. Peak reverse energy test circuit.
12
