MIL-PRF-19500-554 Semiconductor Device, Diode, Silicon, Schottky Barrier, Fast Recovery, Type 1N6392, Jan, Jantx, Jantxv, And JanhcThis specification covers the performance requirements for a silicon, fast recovery, Schottky barrier semiconductor diode. Three levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. One level of product assurance is provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/554E
Dimensions
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.210
.220
5.38
5.46
B
.190
.210
5.03
5.08
C
.012
.013
.30
.33
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. The metallization characteristics of the die are:
Anode (front)
Cathode (back)
Ag
Ag
4. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

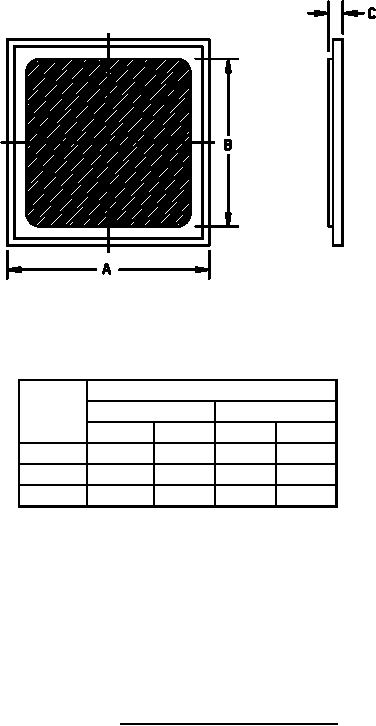

* FIGURE 2. JANHCA die dimensions (A version).
