MIL-PRF-19500-556 Semiconductor Device, Field Effect Transistor, N-Channel, Silicon, Types 2N6782, 2N6782U, 2N6784, 2N6784U, 2N6786, And 2N6786U, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for an N-channel, enhancement-mode, MOSFET, power transistor. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/556L
2N6782, 2N6782U, 2N6784, 2N6784U, 2N6786, 2N6786U

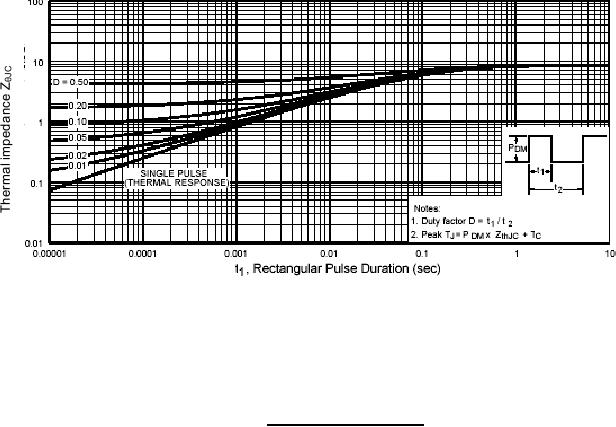

FIGURE 6. Thermal impedance curve.
