MIL-PRF-19500-556 Semiconductor Device, Field Effect Transistor, N-Channel, Silicon, Types 2N6782, 2N6782U, 2N6784, 2N6784U, 2N6786, And 2N6786U, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for an N-channel, enhancement-mode, MOSFET, power transistor. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14

MIL-PRF-19500/556L

2N6782 and 2N6784

Dimensions - 2N6782 and 2N6784

Ltr

Inches

Millimeters

Min

Max

Min

Max

.082

.089

2.08

2.26

.062

.066

1.58

1.68

.019

.021

0.48

0.53

.022

.024

0.56

0.61

.012

.014

0.30

0.36

.013

.015

0.33

0.38

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Unless otherwise specified, tolerance is �.005 inch (0.13 mm).

4. The physical characteristics of the die are: The back metals are chromium, nickel, and silver and

the back contact is the drain. The top metal is aluminum.

5. Die thickness is .015 inch (0.38 mm) �.001 inch (0.025 mm).

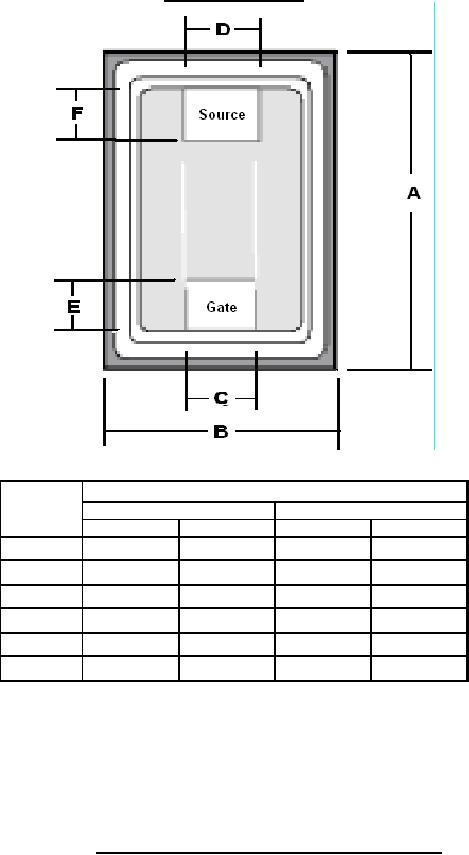

FIGURE 4. JANHCB and JANKCB die dimensions (2N6782, 2N6784).
