MIL-PRF-19500/585K
Ltr
Dimensions
Notes
Inches
Millimeters
Min
Max
Min
Max
BD
.065
.085
1.65
2.16
4
BL
.125
.250
3.18
6.35
3
LD
.027
.032
0.69
0.81
3
LL
.700
1.30
17.78
33.02
NOTES:
(1) Dimensions are in inches.
(2) Millimeters are given for general information only.
(3) Dimension BL shall include the sections of the lead over which the diameter is uncontrolled.
This uncontrolled area is defined as the zone between the edge of the diode body and
extending .050 inch (1.27 mm) onto the leads.
(4) Dimension BD shall be measured at the largest diameter.
(5) In accordance with ASME Y14.5M, diameters are equivalent to x symbology.

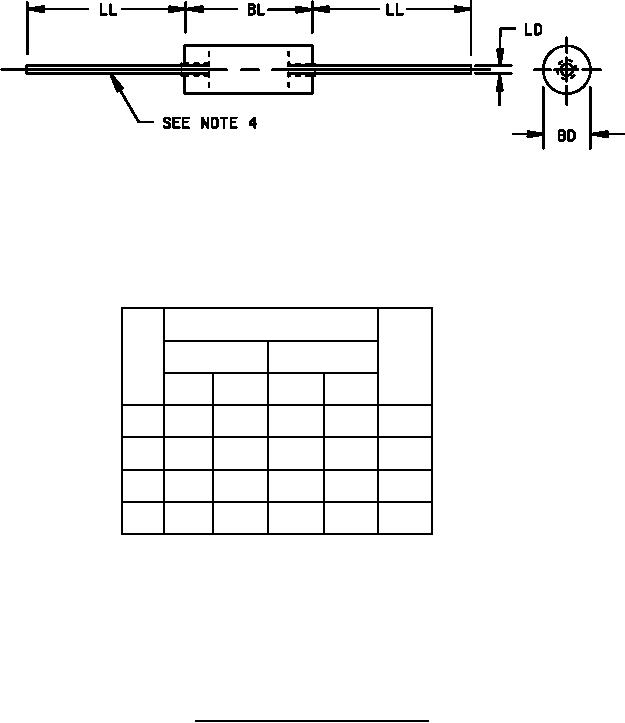

FIGURE 1. Physical dimensions (similar to DO-41).
3
