MIL-PRF-19500-603 Semiconductor Device, Field Effect Radiation Hardened \(Total Dose Only\) Transistors, N-Channel, Silicon, Types 2N7268, 2N7269, 2N7270, 2N7394, 2N7268U, 2N7269U, 2N7270U, And 2N7394U, Jantxvr, F, G, H; Jansr, F, G, And HThis specification covers the performance requirements for an N-channel, enhancement-mode, MOSFET, radiation hardened \(total dose only\), power. Two levels of product assurance are provided for each device type specified in MIL-PRF-19500, with avalanche energy maximum rating \(EAS\) and maximum avalanche current \(IAS\). See 6.5 for JANHC and JANKC die versions.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/603J
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
BL
.535
.545
13.59
13.84
CH
.249
.260
6.32
6.60
LD
.035
.045
0.89
1.14
LL
.510
.570
12.95
14.48
LO
.150 BSC
3.81 BSC
LS
.150 BSC
3.81 BSC
MHD
.139
.149
3.53
3.78
MHO
.665
.685
16.89
17.40
TL
.790
.800
20.07
20.32
TT
.040
.050
1.02
1.27
TW
.535
.545
13.59
13.84
Term 1
Drain
Term 2
Source
Term 3
Gate
NOTES:
1.
Dimensions are in inches.
2.
Millimeters are given for general information only.
3.
Refer to applicable symbol list.
In accordance with ASME Y14.5M, diameters are equivalent to φx symbology.
4.
5.
All terminals are isolated from case.

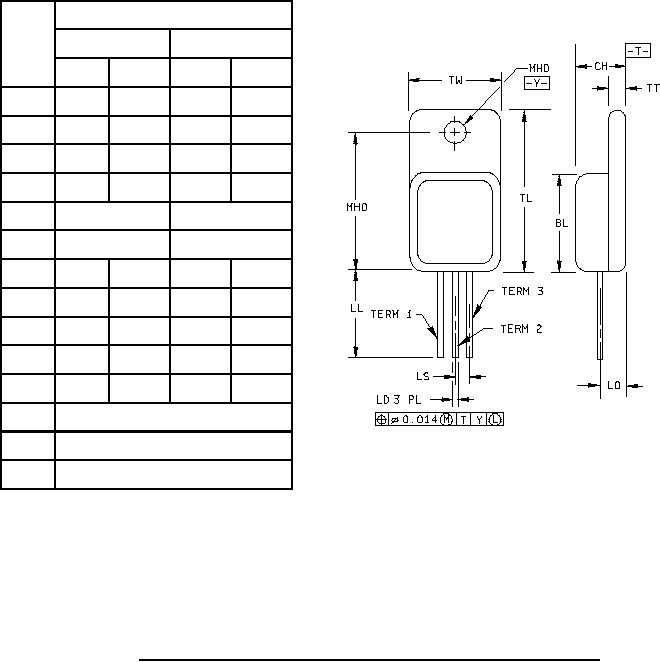

FIGURE 1. Physical dimensions for TO-254AA (2N7268, 2N7269, 2N7270, and 2N7394).
