MIL-PRF-19500/608D

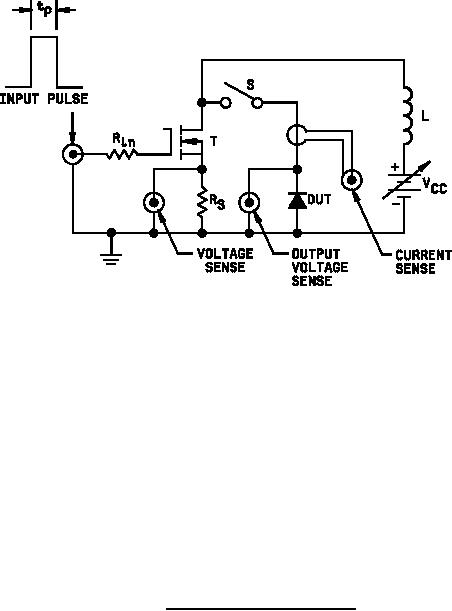

Input pulse: Rin = 50 ohms, 1 watt
VG = 10 volts, RS = 0.1 ohms, 1 watt
ZG = 50 ohms, VCC ≈ 10 volts
tp ≈ 30 ms, L = 260 µH
Duty cycle ≤ 1 percent, T = IRF130/2N6756 or equivalent
PROCEDURES:
1. With S open, adjust pulse width to test current of 2 amps through RS.
2. Close S, verify test current with current sense.
3. Read peak output voltage (see 4.3.3).
FIGURE 6. Peak reverse energy test circuit.
13
