MIL-PRF-19500-620 Semiconductor Device, Hermetic, Diode, Silicon, Rectifier, Schottky Barrier, Types 1N5822, 1N5822Us, 1N6864, 1N6864Us, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for silicon, Schottky barrier rectifier diodes. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500, and two levels of product assurance for die \(element evaluation\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14


MIL-PRF-19500/620J
US
Dimensions
Symbol
Inches
Millimeters
Min
Max
Min
Max
BD
.137
.148
3.48
3.76
BL
.200
.225
5.08
5.72
ECT
.019
.028
0.48
0.71
S
.003
0.08
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

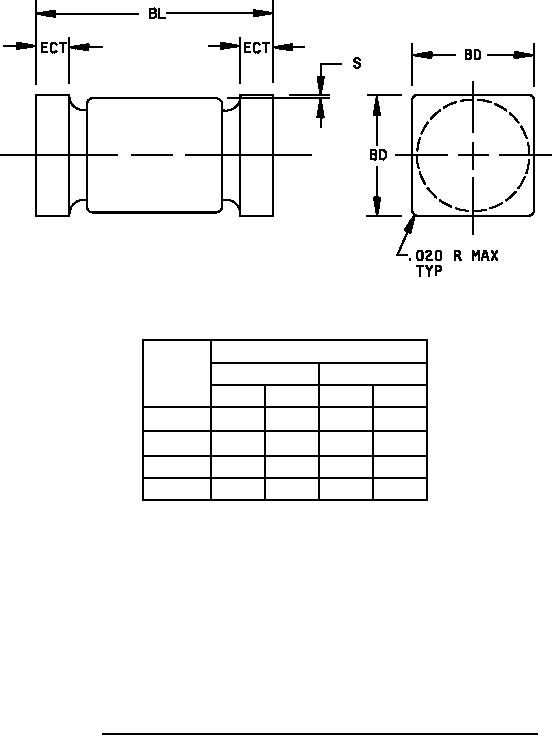

FIGURE 2. Physical dimensions of surface mount family, 1N5822US and 1N6864US.
