MIL-PRF-19500/118L

DO-213AA

Dimensions

Inches

Millimeters

Symbol

Min

Max

Min

Max

.063

.067

1.60

1.70

.130

.146

3.30

3.71

ECT

.016

.022

0.41

0.56

.001

0.03

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. Dimensions are pre-solder dip.

4. Minimum clearance of glass body to mounting surface on all orientations.

5. In accordance with ASME Y14.5M, diameters are equivalent to x symbology.

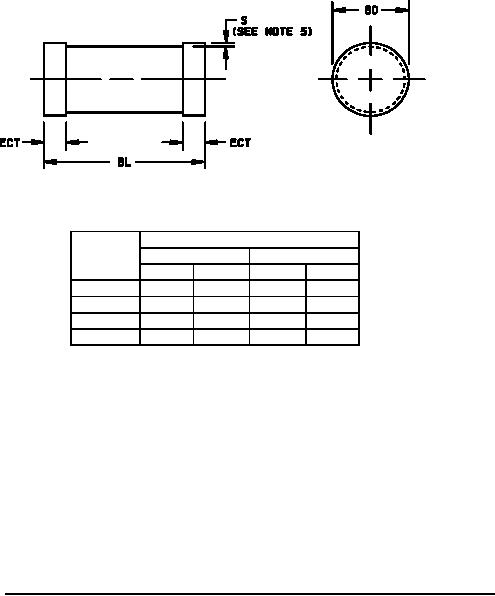

FIGURE 2. Physical dimensions 1N5194UR, 1N5195UR, and 1N5196UR (MELF, DO-213AA).
