MIL-PRF-19500/118L
US
Dimensions
Inches
Millimeters
Symbol
Min
Max
Min
Max
BD
.091
.103
2.31
2.62
BL
.168
.200
4.27
5.08
ECT
.019
.028
0.48
0.71
S
.003
0.08
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Dimensions are pre-solder dip.
4. Minimum clearance of glass body to mounting surface on all orientations.
5. In accordance with ASME Y14.5M, diameters are equivalent to x symbology.

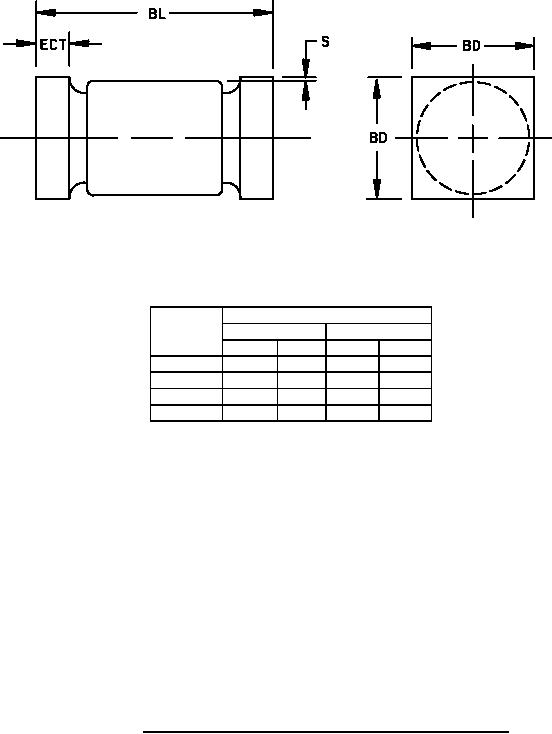

FIGURE 3. Physical dimensions 1N5194US, 1N5195US, and 1N5196US.
5
