MIL-PRF-19500-370 Semiconductor Device, Transistor, Npn, Silicon, High-Power, Type 2N3442, Jan, Jantx, And JantxvThis specification covers the performance requirements for NPN silicon, high-power transistor. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL­PRF­19500/370H
The voltages, VCEO, VCER, or VCEX are acceptable when the trace falls to the right and above point "A".
NOTE:

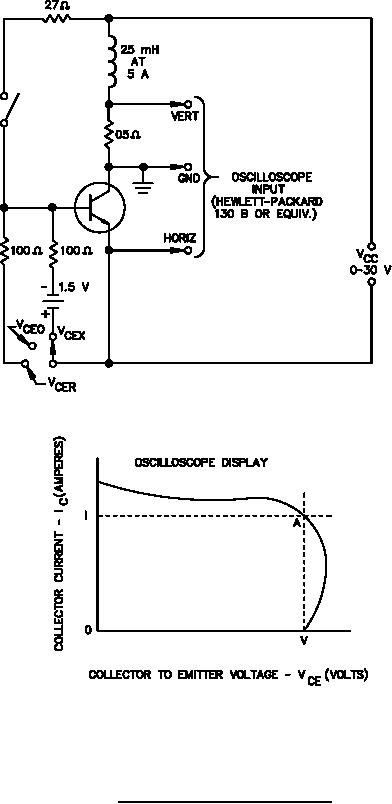

FIGURE 4. Test circuit for VCEO, VCER, and VCEX.
