MIL-PRF-19500-421 Semiconductor Device, Dual Transistor, Unitized, Npn/Pnp, Complementary, Silicon, Types 2N3838, 2N4854, And 2N4854U, Jan, Jantx, And JantxvThis specification covers the performance requirements for unitized, dual transistors which contain a pair of electrically isolated complementary NPN and PNP silicon triode transistors in one package. Three levels of product assurance are provided for each device type as specified in MIL-PRF-19500.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/421G

NOTES:

1. The rise time (tr) of the applied pulse shall be ≤ 2.0 ns, duty cycle ≤ 2 percent, and the generator

source impedance shall be 50 Ω.

2. Sampling oscilloscope: ZIN ≥ 100 kΩ, CIN ≤ 12 pF, rise time ≤ 0.2 ns.

3. The signs, polarity symbols, and waveforms shown are for the NPN transistor; the signs and

polarity symbols are reversed for the PNP triode (see 1.2 herein).

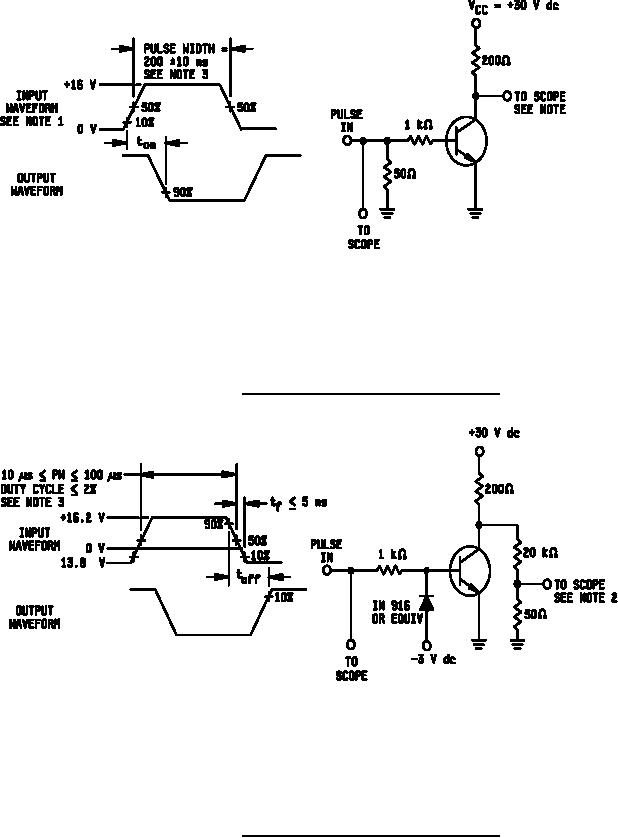

FIGURE 4. Saturated turn-on switching time test circuit.

NOTES:

1. The rise time (tr) of the applied pulse shall be ≤ 2.0 ns, duty cycle ≤ 2 percent, and the generator

source impedance shall be 50 Ω.

2. Sampling oscilloscope: ZIN ≥ 100 kΩ, CIN ≤ 12 pF, rise time ≤ 0.2 ns.

3. The signs, polarity symbols, and waveforms shown are for the NPN transistor; the signs and

polarity symbols are reversed for the PNP triode (see 1.2 herein).

FIGURE 5. Saturated turn-off switching time test circuit.
