MIL-PRF-19500/456E
NOTES:
1. The rise time (tr) of the applied pulse shall be 2 ns; duty cycle 2 percent; generator source impedance shall be
50 .
2. Output sampling oscilloscope: ZIN 100 k; CIN 12 pF; rise time 0.2 ns.

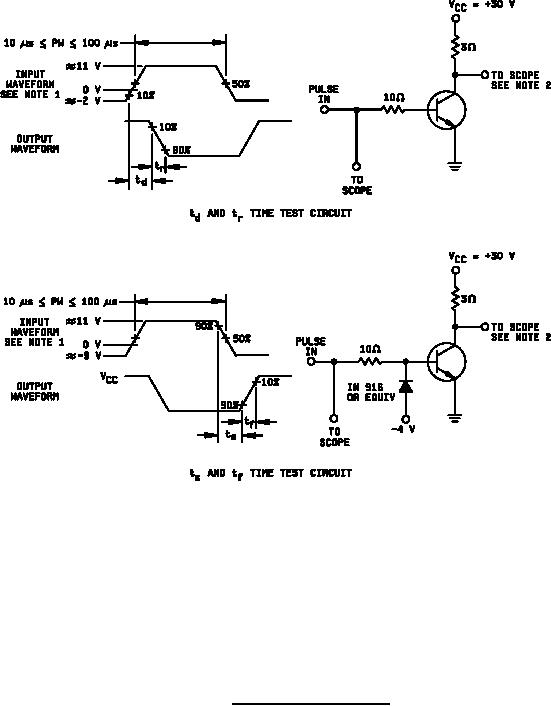

FIGURE 2. Pulse response test circuit.
13
