MIL-PRF-19500/461F

NOTES:

1. The rise time (tr) and fall time (tf) of the applied pulse shall be each ≤ 20 ns, duty cycle ≤ 2

percent, generator source impedance shall be 50 Ω; pulse width = 20 μs.

2. Output sampling oscilloscope: Zin ≥ 100 kΩ, Cin ≤ 50 pF, rise time ≤ 20 ns.

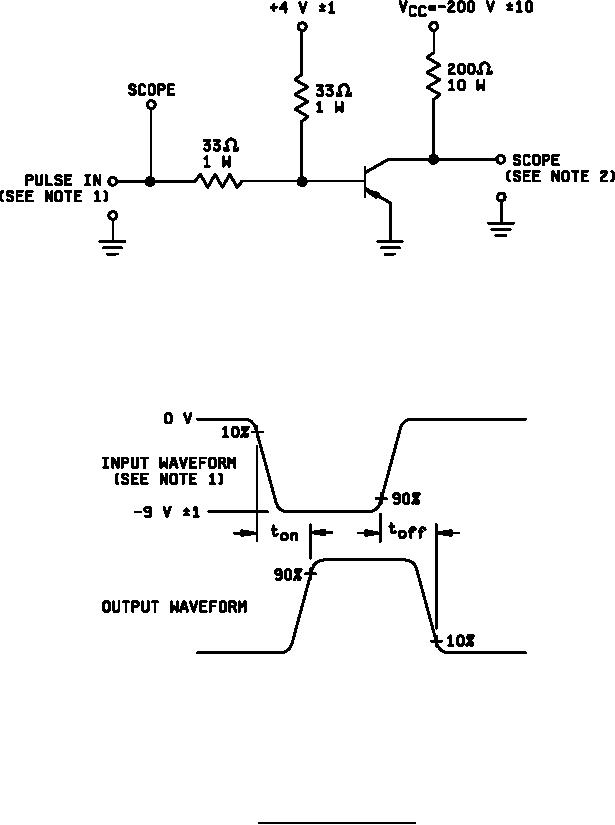

FIGURE 3. Pulse response test circuit.
