MIL-PRF-19500-461 Semiconductor Device, Transistor, Pnp, Silicon, High-Power Type 2N6211, 2N6212, 2N6213, 2N6213A, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for PNP silicon, high-voltage. Four levels of product assurance are provided for each device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-PRF-19500/461F
NOTE: Electrical characteristics for 2N6213A are identical to the 2N6213 unless otherwise noted.

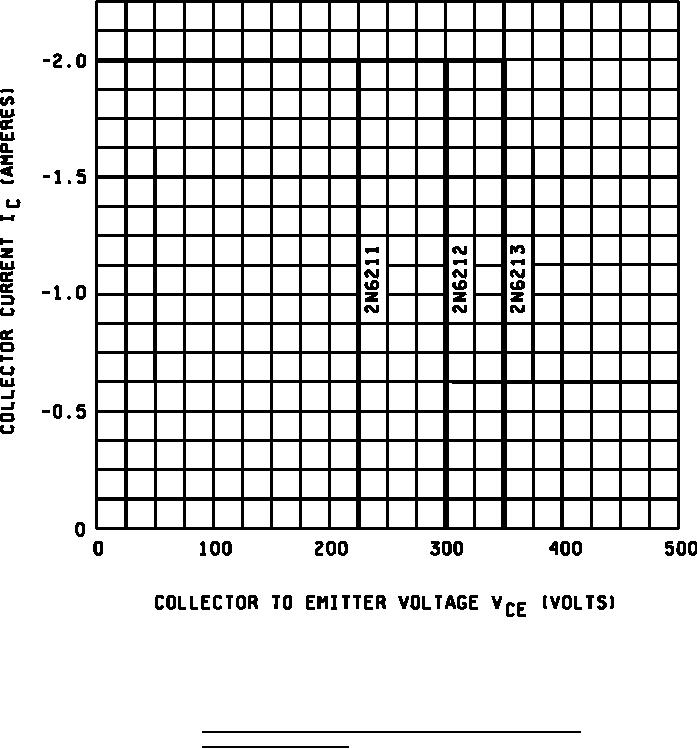

FIGURE 6.
Safe operating area for switching between saturation and cutoff
(clamped inductive load).
15
