MIL-PRF-19500-463 Semiconductor Device, Diode, Silicon, Current Regulator, Types 1N5283-1 Through 1N5314-1, And 1N5283Ur-1 Through 1N5314Ur-1, 1N7048-1 Through 1N7055 1, 1N7048Ur-1 Through 1N7055Ur-1, Jan, Jantx, Jantxv, Jans, Janhc, And JankcThis specification covers the performance requirements for 100 volt, silicon, current regulator diodes. Four levels of product assurance are provided for each encapsulated device type as specified in MIL-PRF-19500. Two levels of product assurance are provided for each unencapsulated device type.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15

MIL-PRF-19500/463K

DO-7

Dimensions

Inches

Millimeters

Symbol

Min

Max

Min

Max

.060

.107

1.52

2.72

.120

.300

3.05

7.62

.018

.023

0.46

0.58

1.000

1.500

25.40 38.10

0.050

1.27

NOTES:

1. Dimensions are in inches.

2. Millimeters are given for general information only.

3. The minimum body diameter shall be maintained over .15 inch (3.81 mm) inch of body length.

4. The specified lead diameter applies in the zone between .050 inch (1.27 mm) and

the end of the lead. Outside of this zone the lead diameter shall not exceed LD.

5. Both leads shall be within the specified dimension.

6. See 3.3 for L and TL definitions.

7. In accordance with ASME Y14.5M, diameters are equivalent to Φx symbology.

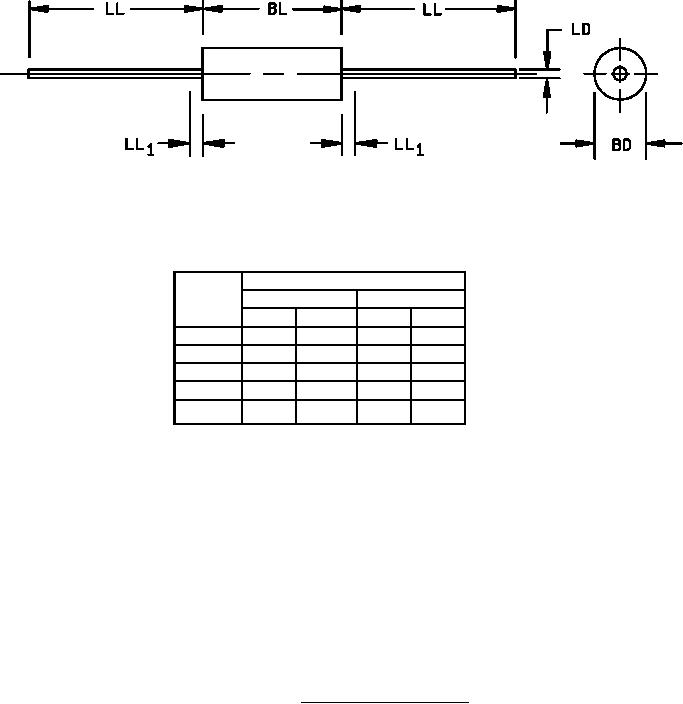

FIGURE 1. Physical dimensions (DO-7).
